Aruba Certified Mobility Professional 6.0 - ACMP Free Exam Questions [2026]

QUESTION NO: 1

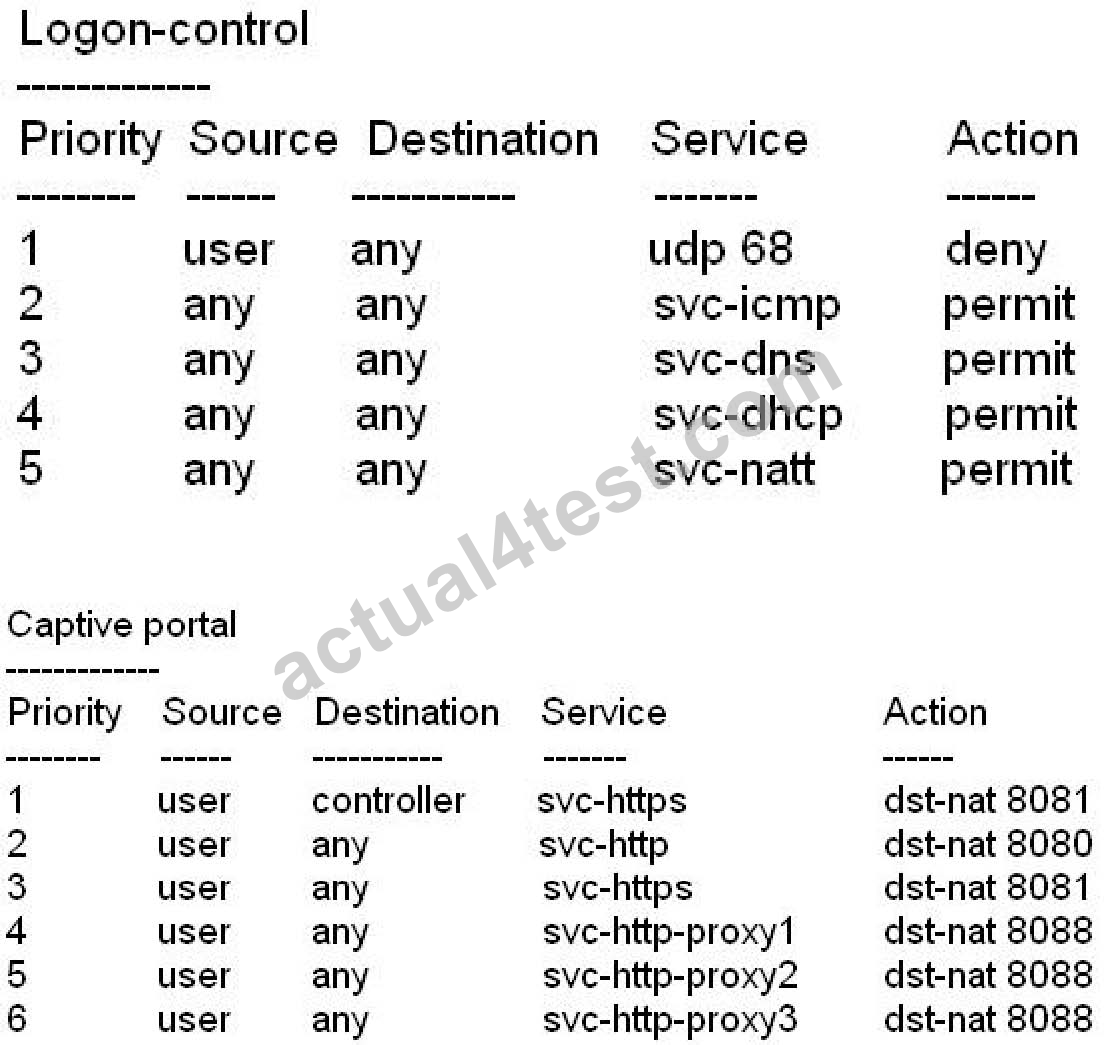

Review the following truncated output from an Aruba controller for this item.
(Example) #show rights logon
Derived Role = 'logon' Up BW:No Limit Down BW:No Limit L2TP Pool = default-l2tp-pool PPTP Pool = default-pptp-pool Periodic reauthentication: Disabled ACL Number = 1/0 Max Sessions = 65535

Based on the above output from an Aruba controller, an unauthenticated user assigned to the logon role attempts to start an http session to IP address 172.16.43.170.
What will happen?

A. the user will not reach the IP address because of the policy statement: user any svc-http dst-nat 8080

B. the user's traffic will be passed to the IP address because of the policy statement: user any svc-http dst-nat 8080

C. the user will not reach the IP address because of the implicit deny any any at the end of the policy.

D. the user's traffic will be passed to the IP address because of the policy statement: user any svc-https dst-nat 8081

E. the user's traffic will be passed to the IP address because of the policy statement: user any svc-http-proxy1 dst-nat 8088

Discussion 0

Correct Answer: A Vote an answer

QUESTION NO: 2
What is the maximum number of campus APs supported by a 620 controller?

A. 32

B. 24

C. 8

D. 16

Discussion 0

Correct Answer: C Vote an answer

QUESTION NO: 3
An Aruba based network has a Master and three local controllers. No APs terminate on the Master controller. IDS is desired, so the administrator wants to install the "RFProtect license."
On which controller should the license be installed?

A. this isn't the correct license for this purpose

B. the local controllers since the APs terminate there

C. all of the controllers

D. master controller since it performs the IDS analysis

Discussion 0

Correct Answer: C Vote an answer

QUESTION NO: 4
An Aruba RAP2 model can authenticate its IPSec tunnel to a controller using which of the following methods? Choose all that apply.

A. 802.1X

B. Certificate and MAC address authentication.

C. IP address authentication

D. Captive Portal

E. Legacy Username/Password authentication.

Discussion 0

Correct Answer: B,E Vote an answer

QUESTION NO: 5
A campus AP has been provisioned with a VAP in bridge forwarding and standard operation modes. Which of the following authentication types are supported?

A. Machine authentication

B. Open System authentication

C. Captive portal authentication

D. 802.1X authentication

Discussion 0

Correct Answer: B,D Vote an answer

QUESTION NO: 6
With Visual RF location tracking, show location history can be set for a maximum of?

A. 24 hours

B. 12 hours

C. 1 hour

D. 6 hours

Discussion 0

Correct Answer: A Vote an answer

QUESTION NO: 7
The permanent licenses on the controller will be deleted with the use of which command?

A. Licenses cannot be deleted once activated

B. write erase all

C. write erase

D. delete license

Discussion 0

Correct Answer: B Vote an answer

QUESTION NO: 8
An Aruba controller is configured with the correct IP address and gateway information and is connected to the corporate LAN via a core layer 2 switch. An access point is provisioned with AP name and group and connected to a different switch on the corporate LAN that has IP connectivity to the core layer 2 switch. The AP powers on and connects to the LAN, but the wireless radios do not power on.
Which could cause this condition? (Choose all of the correct answers.)

A. the layer 2 switches have ACLs that block GRE traffic

B. the AP name needs to be configured on the Aruba controller

C. a DHCP server is not configured for the segment to which the AP is connected

D. the layer 2 switches are configured to block multicast traffic

Discussion 0

Correct Answer: A,C,D Vote an answer

QUESTION NO: 9
Which of the following statements is not true about the remote node?

A. Remote Node can only be configured using the CLI

B. A RN-Master can be either a Master or a Local controller

C. Only L3 configurations are pushed from a RN-Master to an Remote Node

D. Remote Node is only used for Remote AP termination

E. Remote Node builds an Ipsec tunnel to Remote Node Master?

Discussion 0

Correct Answer: C,D Vote an answer

QUESTION NO: 10
What settings need to be changed on a factory default AP in order for it to use ADP to discover the Aruba Controller?

A. DNS of the controller

B. AP group

C. Static route

D. None

Discussion 0

Correct Answer: D Vote an answer

QUESTION NO: 11
What is the best practice regarding licensing for a backup master to support Master Redundancy?

A. Backup master only requires the AP license

B. Licenses are pushed from the primary to the backup Master along with the configuration

C. License limits should be the same on primary master and backup Master

D. Backup Master does not require licenses to support master redundancy

Discussion 0

Correct Answer: C Vote an answer

QUESTION NO: 12
Which Aruba controllers are able to provide IEEE 802.3af POE? (Choose all the correct answers.)

A. 650

B. 620

C. 3200

D. 6000

Discussion 0

Correct Answer: A,B,D Vote an answer

QUESTION NO: 13
Which protocol does the Aruba controller utilize for controller redundancy?

A. HSRP

B. VPN

C. GRE

D. VRRP

E. IP-IP

Discussion 0

Correct Answer: D Vote an answer

QUESTION NO: 14
What is the function of Band Steering?

A. Enables selection of 20 vs. 40 MHz mode of operation per band

B. Coordinate access to the same channel across multiple APs

C. Balancing clients across APs on different channels within the same band

D. Enables acceptable coverage index on both the "b/g" and "a" spectrums

E. Encourages clients, 5GHz capable, to connect on the 5GHz spectrum

Discussion 0

Correct Answer: E Vote an answer

QUESTION NO: 15
Which method is NOT supported to provision an Aruba thin AP?

A. Telnet directly to AP

B. Web interface to the AP's controller

C. SSH to the AP's controller

D. Console to AP

Discussion 0

Correct Answer: A Vote an answer
